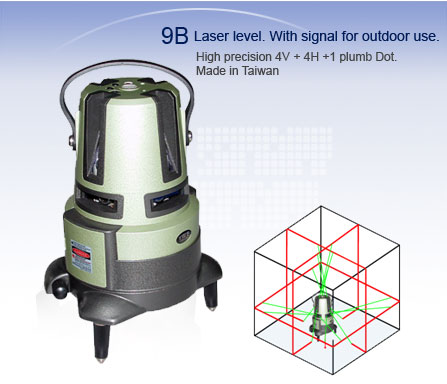

9B Laser level. With signal for outdoor use.

9B Laser

Laser level. With signal for outdoor use.
High precision 4V + 4H +1 plumb Dot. Made in Taiwan

FEATURES

	Twin Self-leveling system. (Accuracy 0.5mm/10M)
	Indoor use & Out door use with the receiver.
	4 vertical , 4 horizontal and 1 plumb laser beam.
	360 ° rotary base and micron-adjust button
	Low battery power indicator
	Can be used with tripod.
	Two years warranty from date of purchase.

9B Specification

Light source		Semiconductor
9 Laser beams		4V, 4H + 1 plumb laser beam
Output power		1mW
Wave length		635 nm/Line
Width of laser line		3 mm / 10 M
Accuracy		1 mm / 10 M
Square accuracy		1 mm / 10 M
Repeat ability		0.5 mm / 10 M
Time of stable equilibrium		< 5 sec
Self-leveling rang e		3.5 °
Incline sensor switch		3.5 °
Battery power		3 AA batteries x 2 sets
Working temperature range		-10 °C ~ +40 °C
Dimensions		X 200 mm H 220 mm
Weight(itself)		1.98 kg (With battery)

Working range	Indoor	10 M
	Outdoor	> 30 M with Receiver
Life time(MMTF) r 2000 hours		r 2000 hours
Safety / Quality approval CE,FDA		CE,FDA

2005 Golden Prize Award at the National Invention in Taiwan .
